I see that the Makerspace needs this organizer for Bolts,Nuts and Screws.
Step 1:

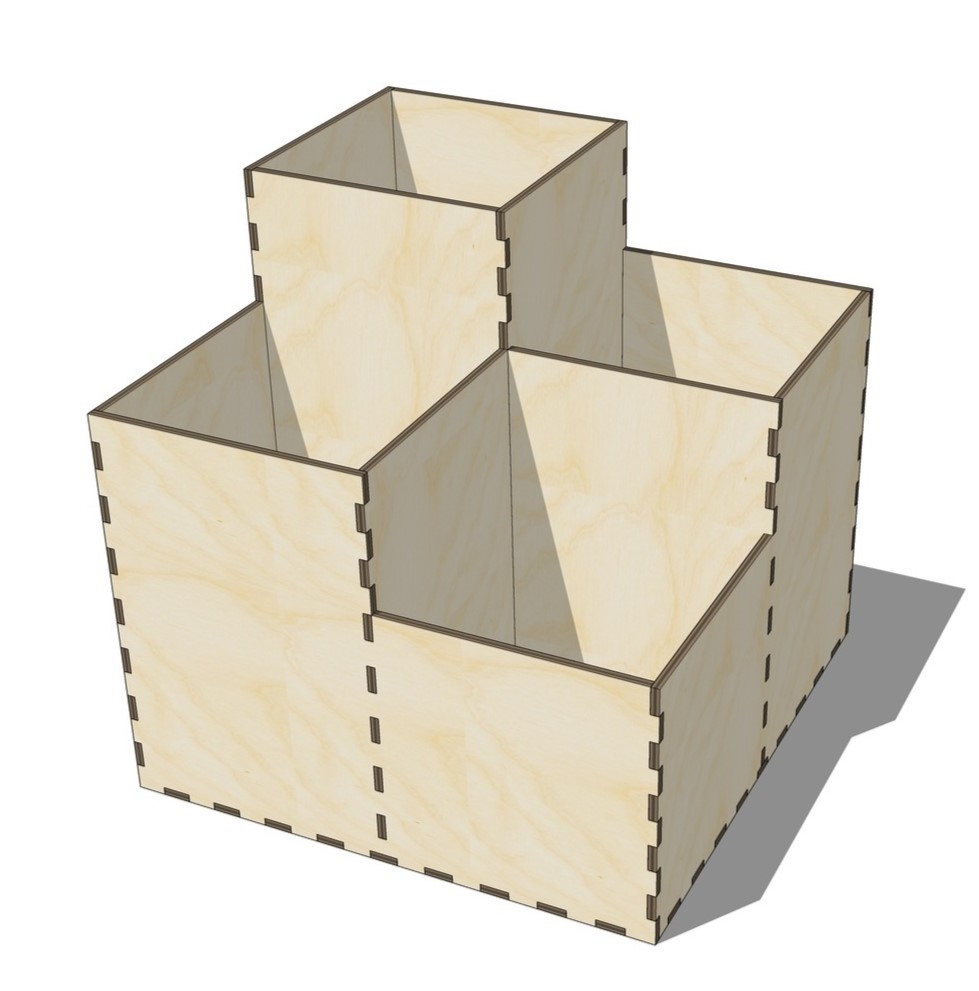

I tried to search for desk organizer and i found this good one.
Step 2:

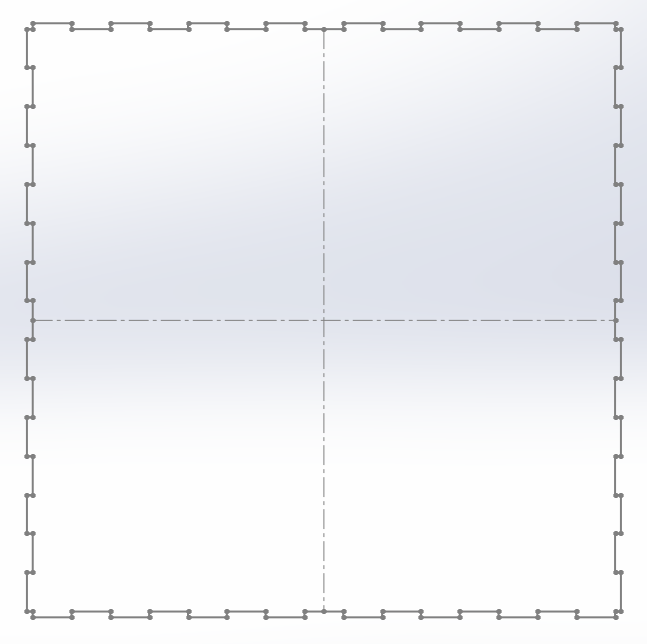

I opened solid works and begin with design base of model.
I made box joints with pin and socket length 20mm
Step 3:

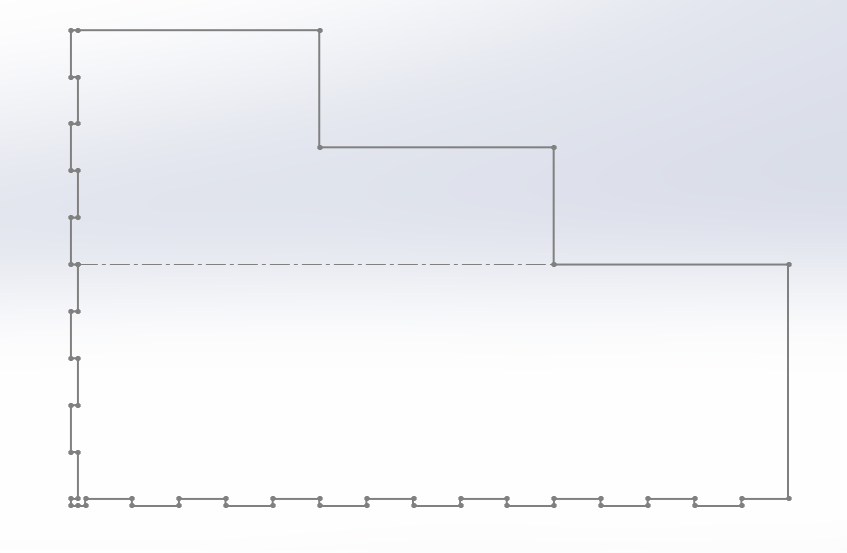

I Created first side.
I made box joints with pin length 20,1 and socket length 19,9 .
I made stairs in each side to make pyramid shape.

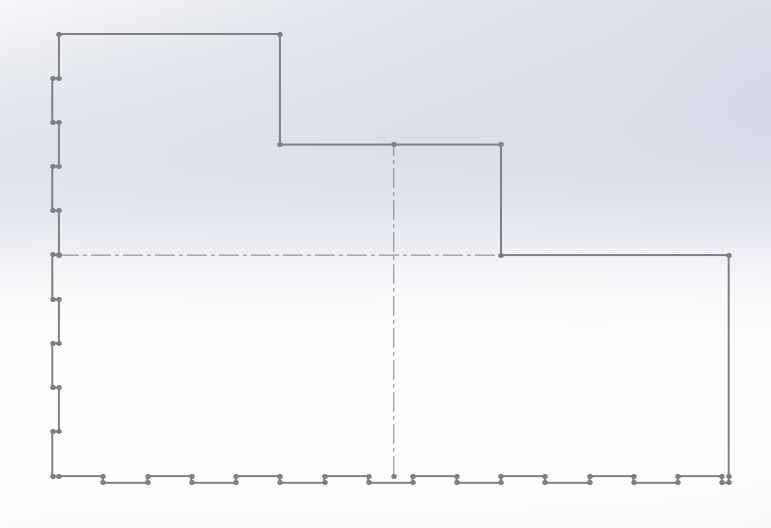

Nearly the same with second side.
Step 4:

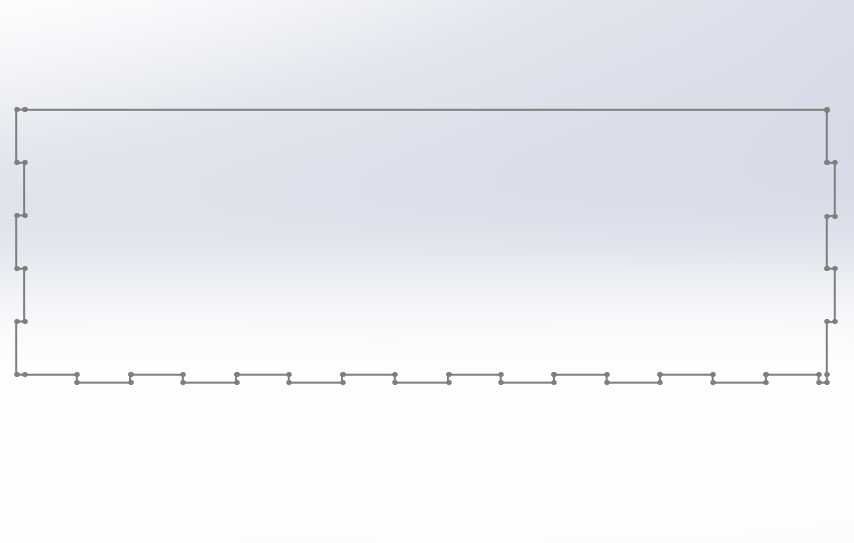

I Created third side with length 100x303.
Fourth side is the same
Step 5:

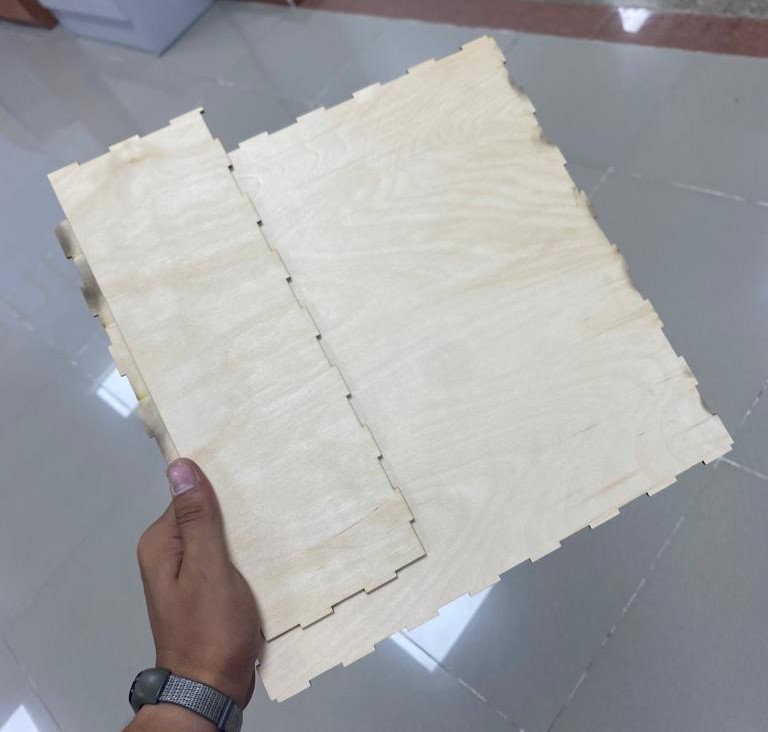

I tried to Cut base and third side.
(Problem is the two sides don't fit with each others so i changed dimensions of other sides)
parameters : power-70 speed-30

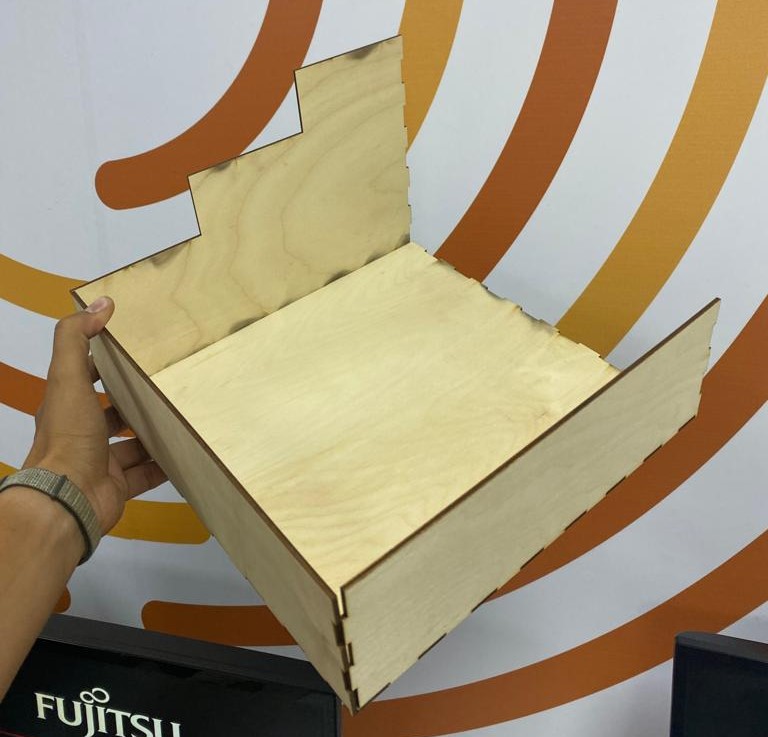

Step 6:
This time, Parts fits with each others more but i added glue for more.
parameters : power-65 speed-45
Step 7:
I designed spacers of the box of length 300mm.
parameters : power-65 speed-45

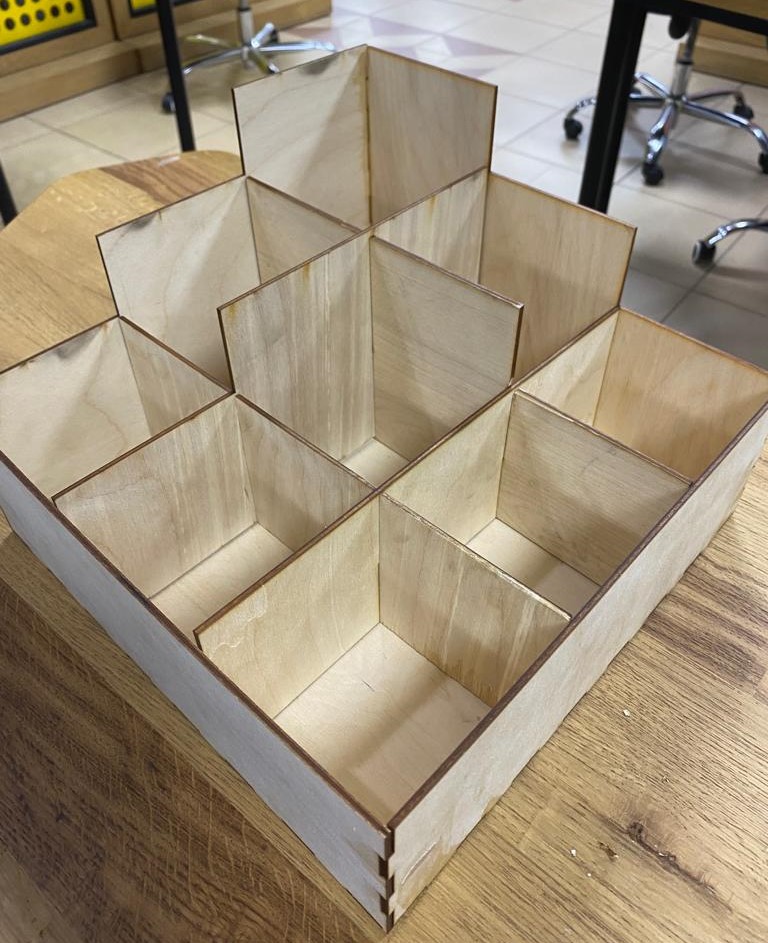

Step 8:
Finally i added spacers inside the box.
