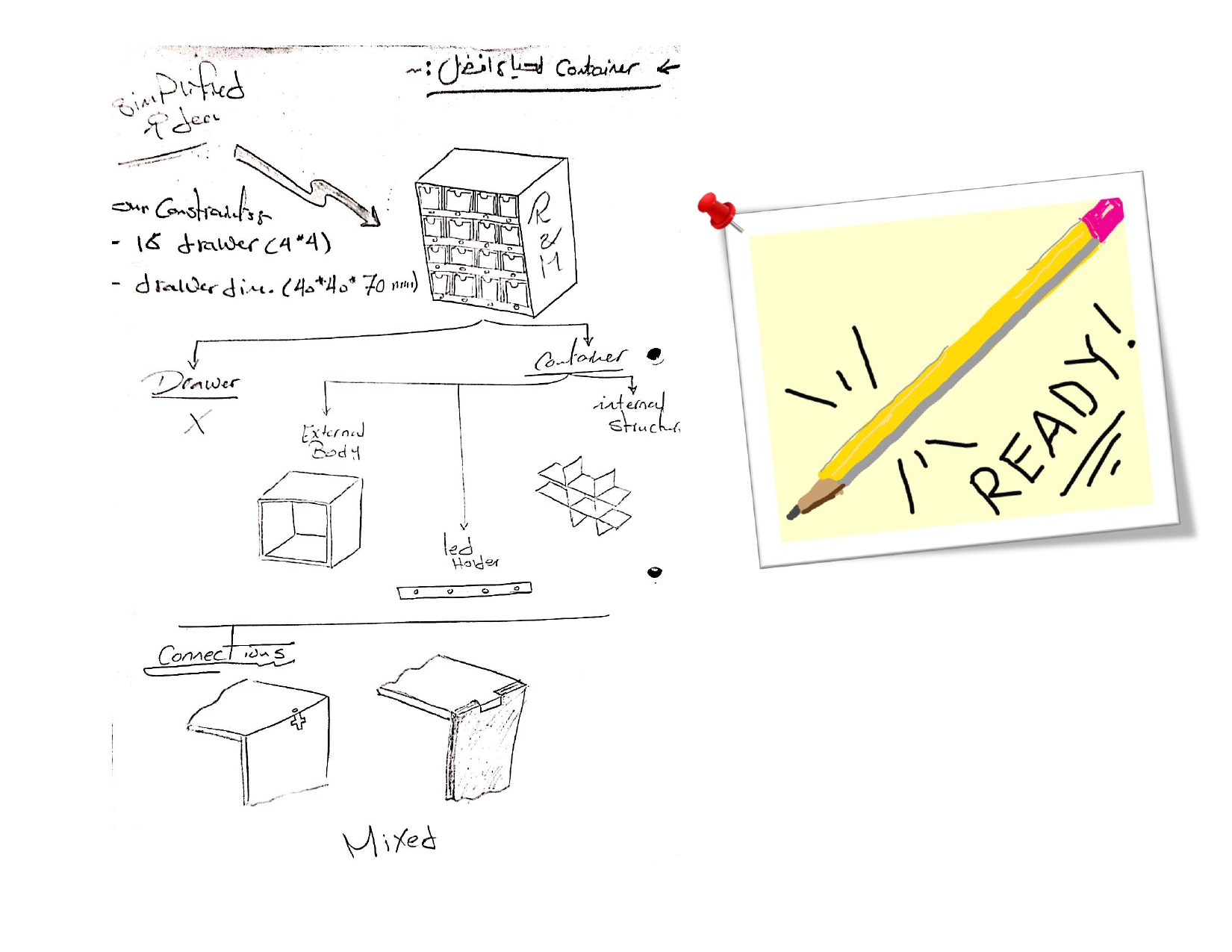

Step 1: Free hand sketch
After collecting some different ideas from different resourses (which are Ayman's drawing). Finally, we can choose our one.

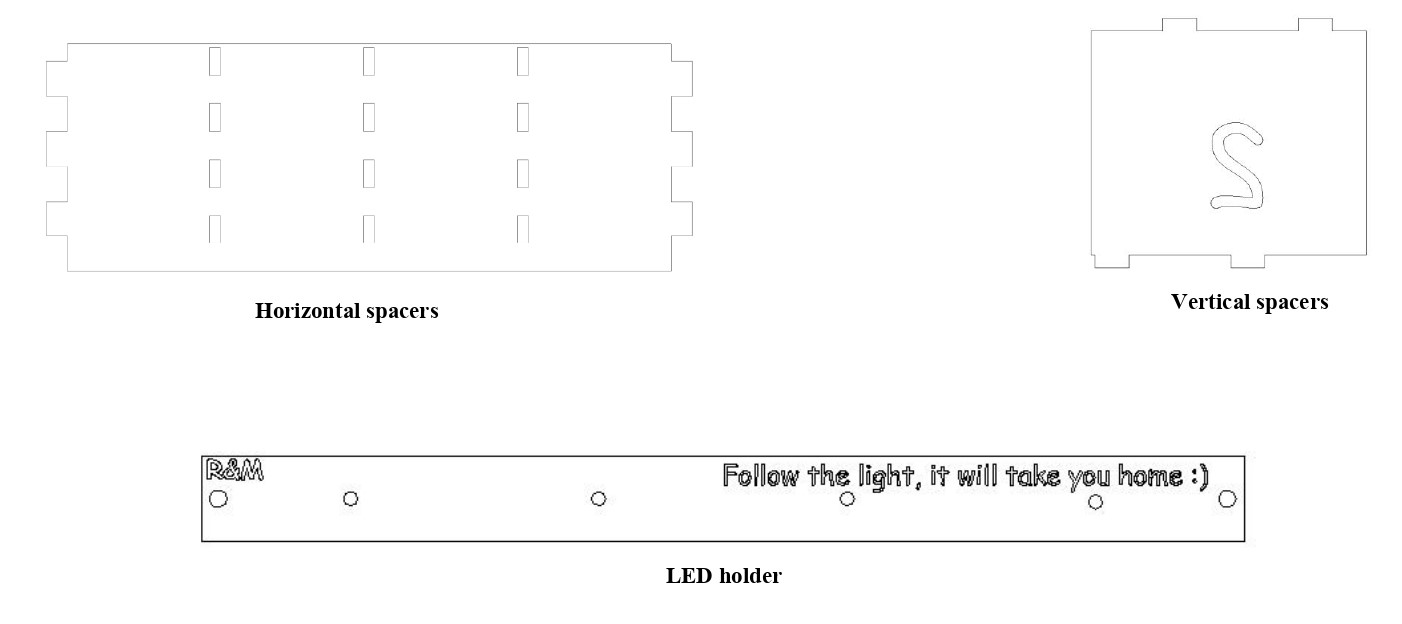

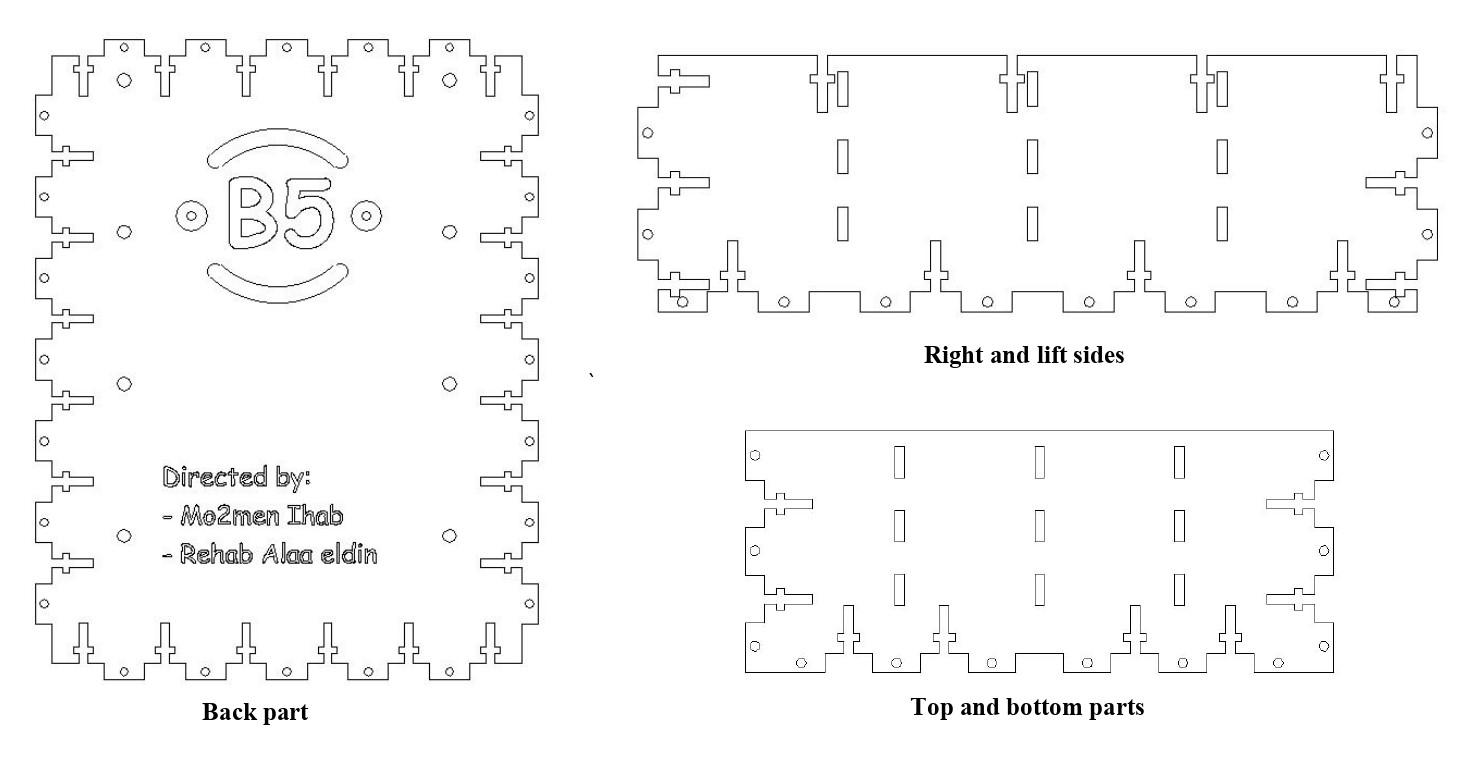

Step 2: Drawing
Open any 2D CAD tool (as SolidWorks, AutoCAD, Fusion, .. ) and JUST KEEP DRAWING :)
Then save as DXF format :)
Another note: You can draw it and assume any missing dimension.
Step 3: From DXF to U file
Open RDWorks software.
file --> import --> select your .dxf file
adjust the speed and power to be suitable with 6 mm and 3 mm wood thickness .
Finally, export the machin format file (U file) from SaveToUFile button.
Step 4: Cutting Now
The final step is uploading the U file into a flash memory, read this flash memory by the machine, and copy it to the machine memory.
Adjust the new origin of the machine to be suitable with the existing wooden sheet. Check the working area from frame button.
Finally, press start button ").

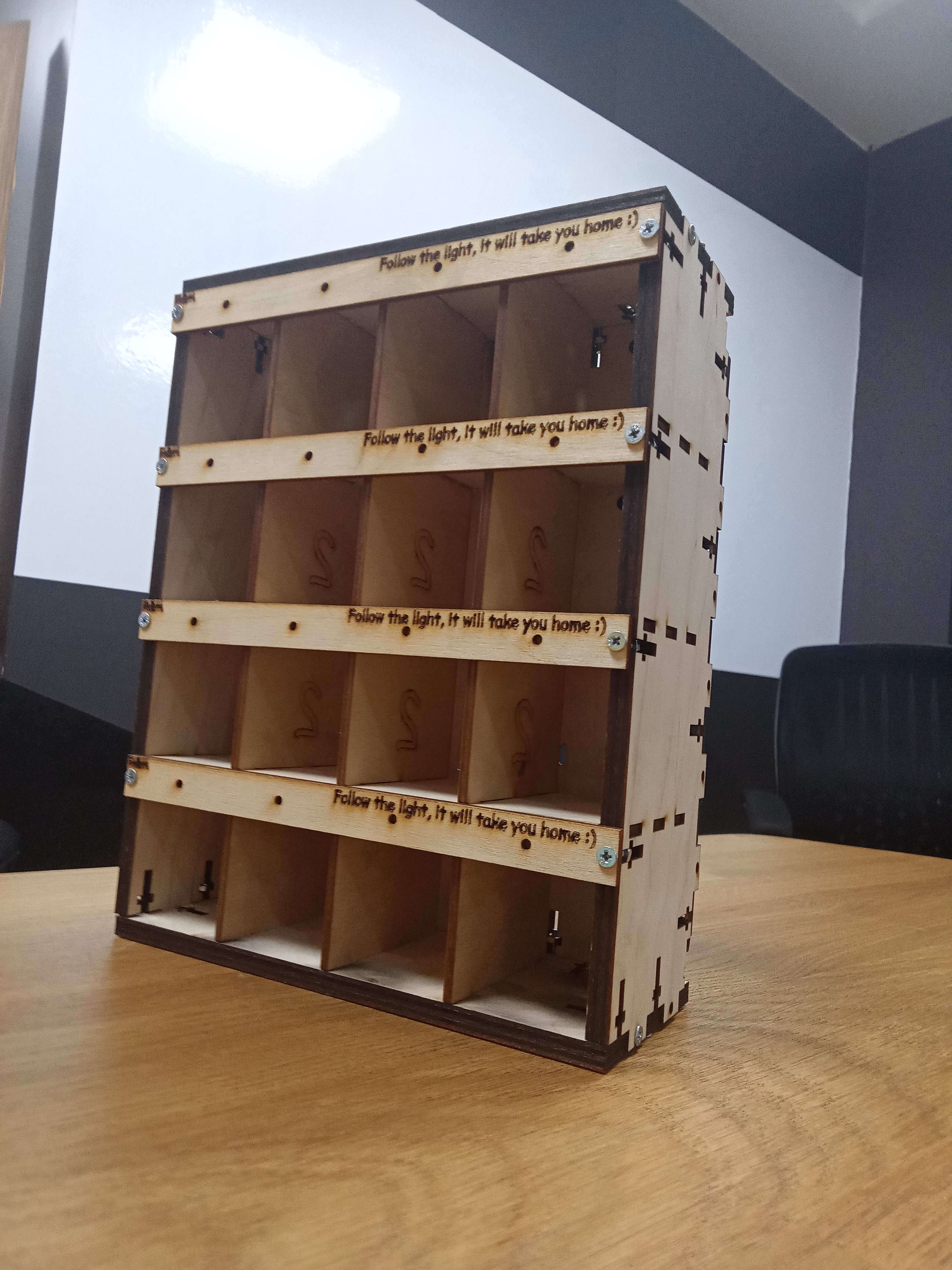

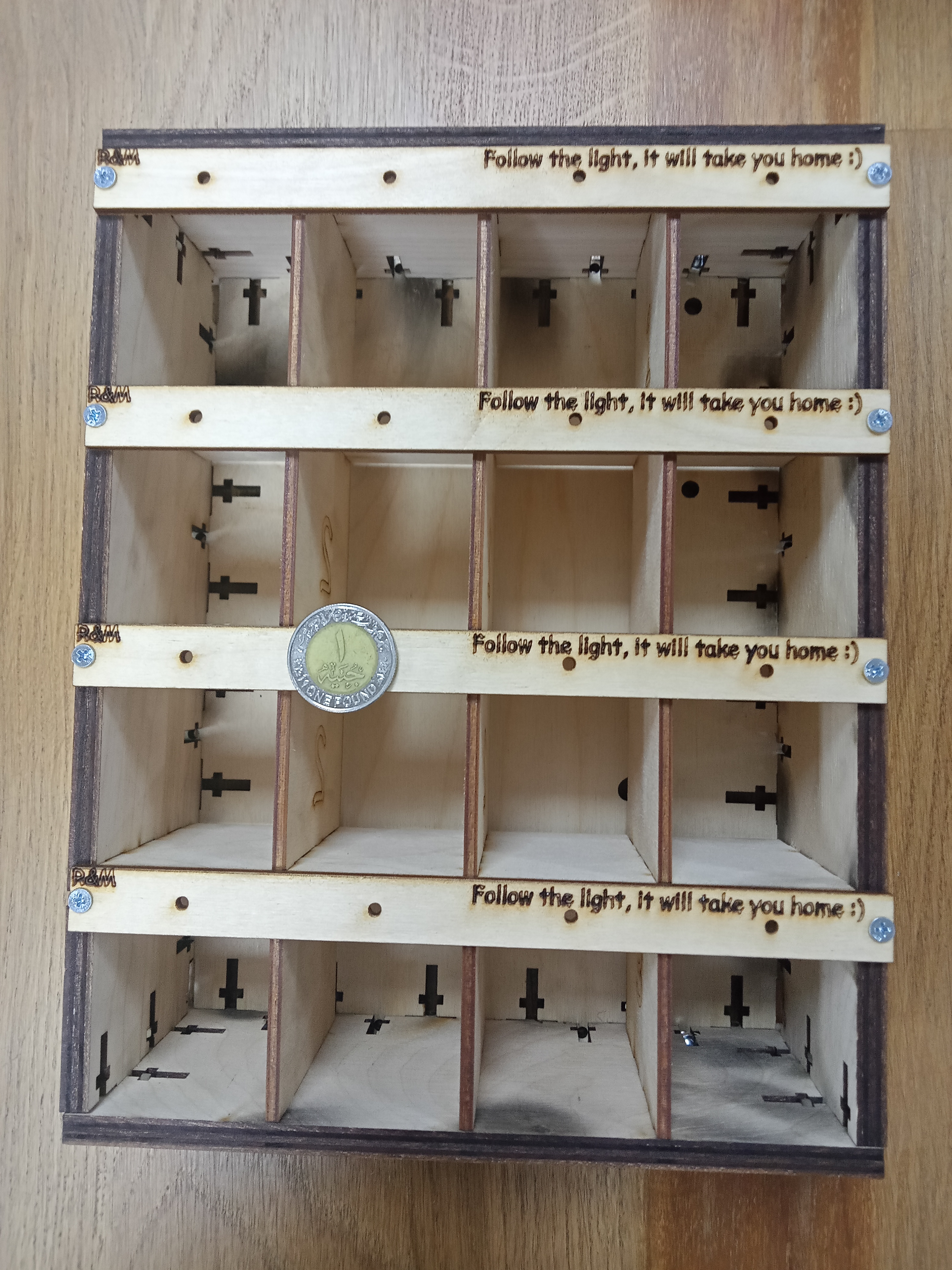

Step 5: Enjoy with your container
OOPS! .. Don't forget to draw your drawer ").
Thank You for your listening :)
(actually you read, but I imagine you listen to me)
