My Task:-

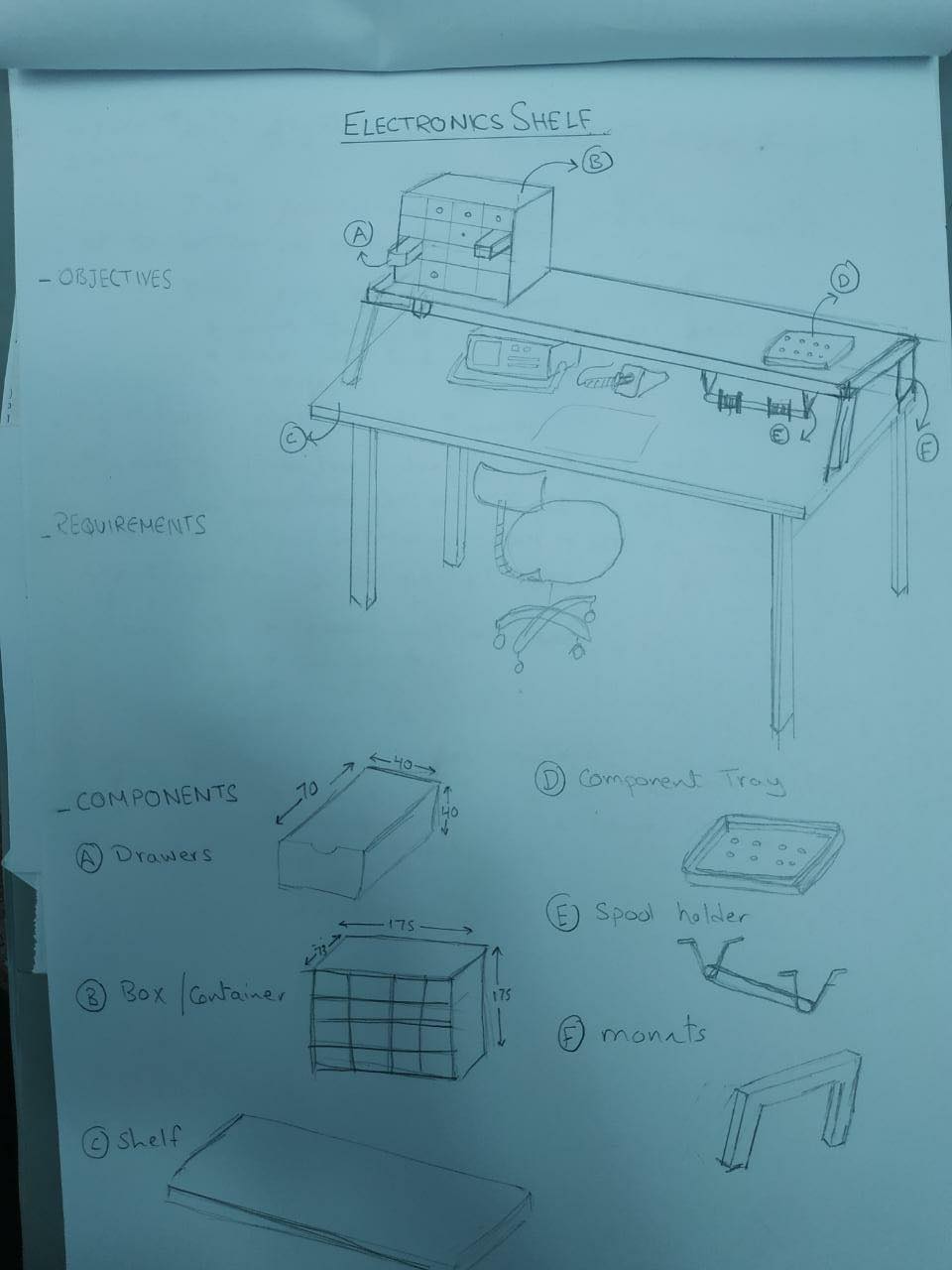

My task was the shelf, designing it with some qualities....
- make a place for joints for other shelfs to be connected
- make grooves for other equipments to be put on top of it
- make places for joints downside for other parts to be connected
--------- The Process ---------

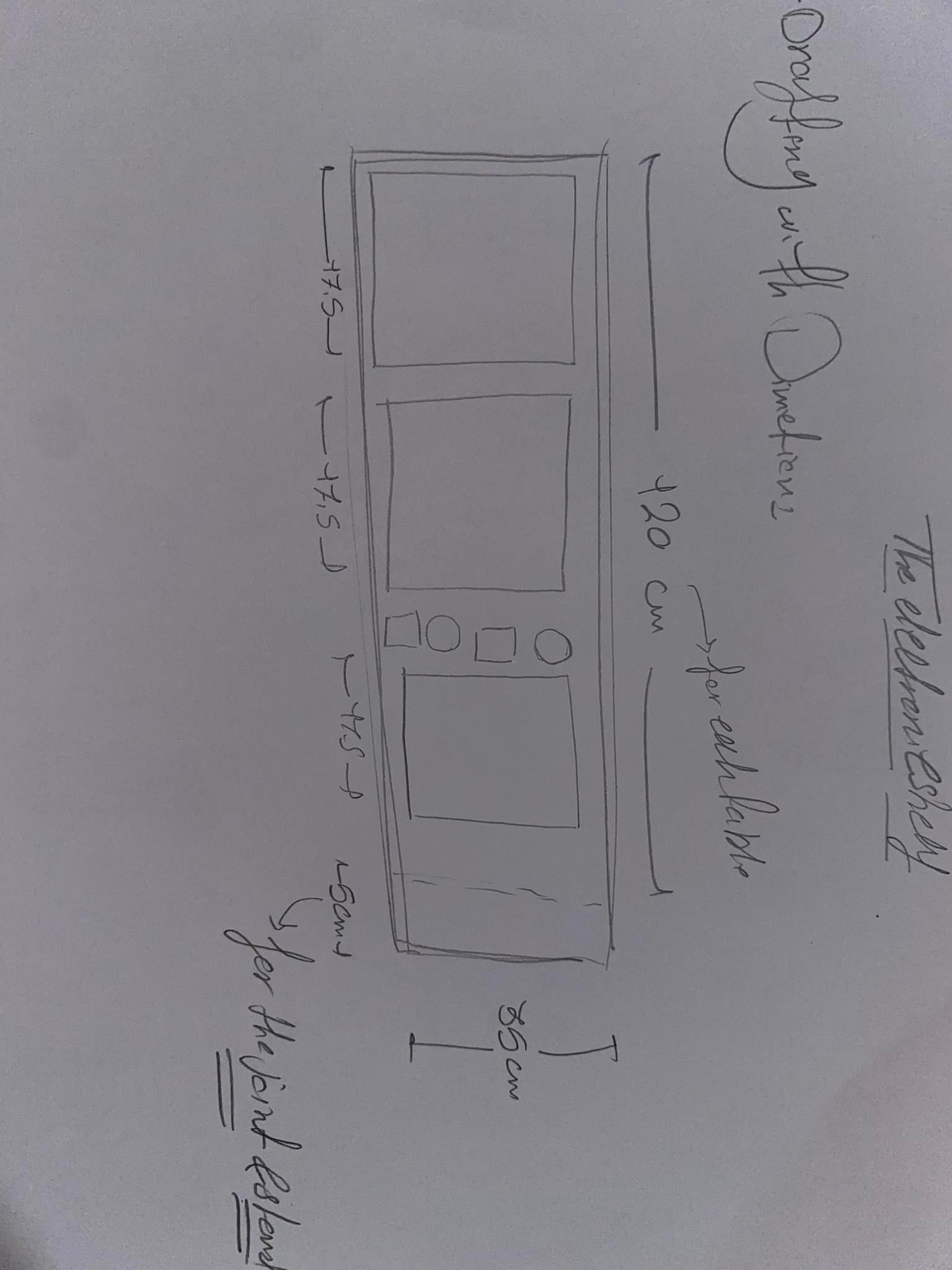

Step1 | Drafting & Testing
we start designing on cad apps and making a test version of our thoughts of the project and thinking more for designing the joints between shelfs

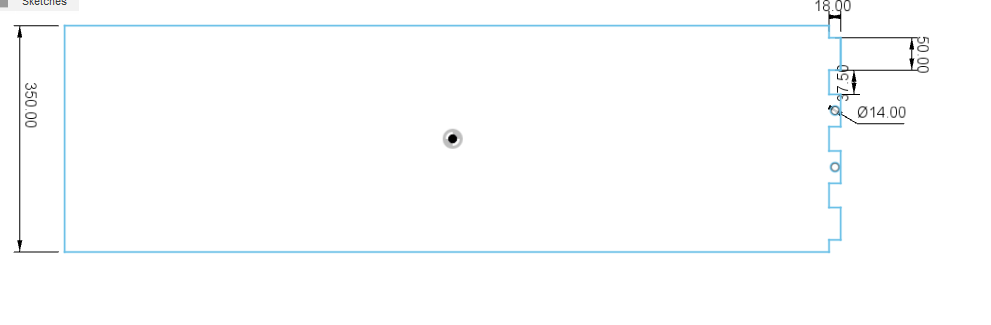

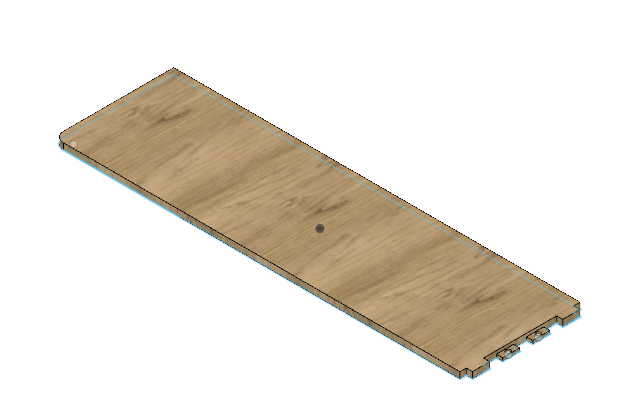

The shelf after extruding it using fusion 360 cad app

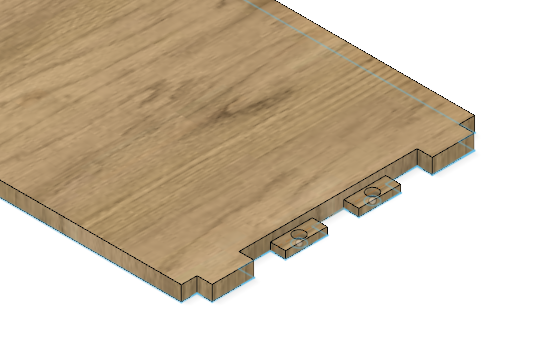

and for the 3d test on fusion 360 of the joints between every 2 shelfs

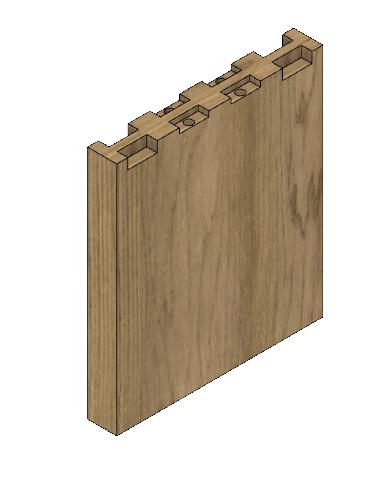

Then the joint between the 2 shelfs's design it's a simple stand with places for the shelf's joints to be well adjusted
it's 400mm hight from the main desk in the co-working space sector B5
