PCB TASK | Blue Organs

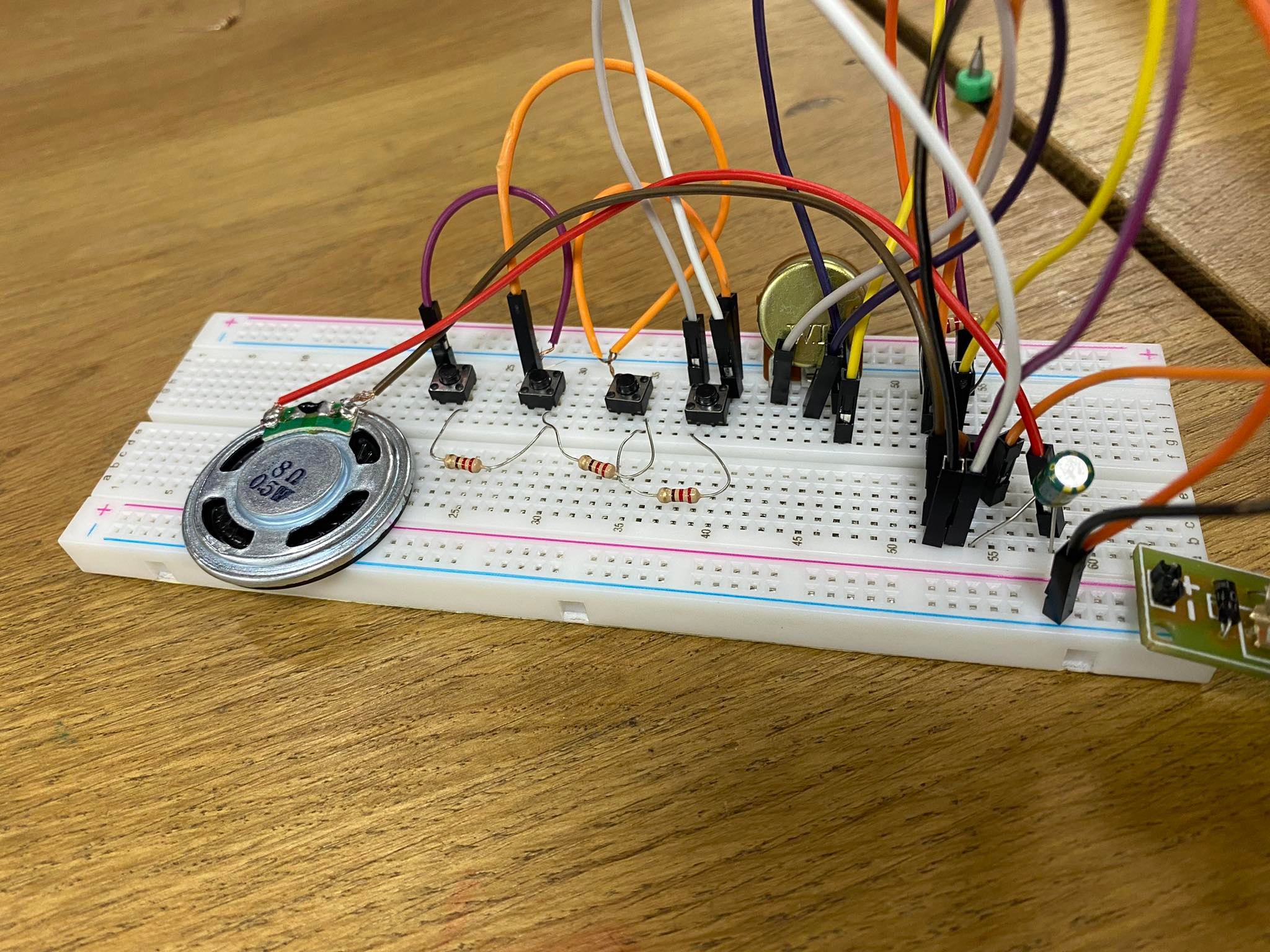

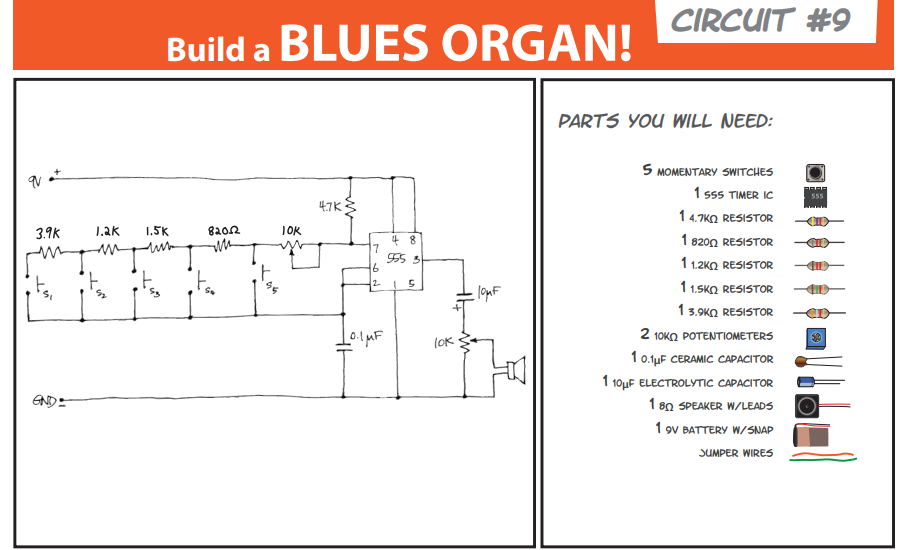

Let's make some music for a little with electronics, so i will make a simple piano with electronics
And then draw the circuit on eagle to grave it on a pcb board

The Process

STEP1

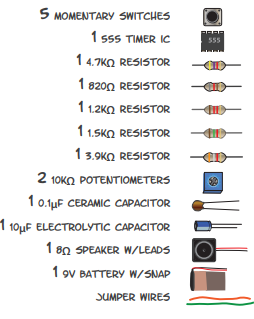

Components we need..

STEP2

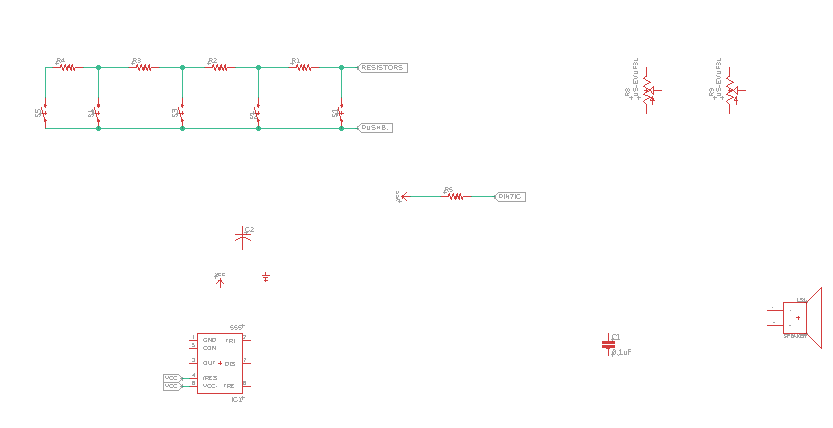

Drag the components on Eagle

STEP3

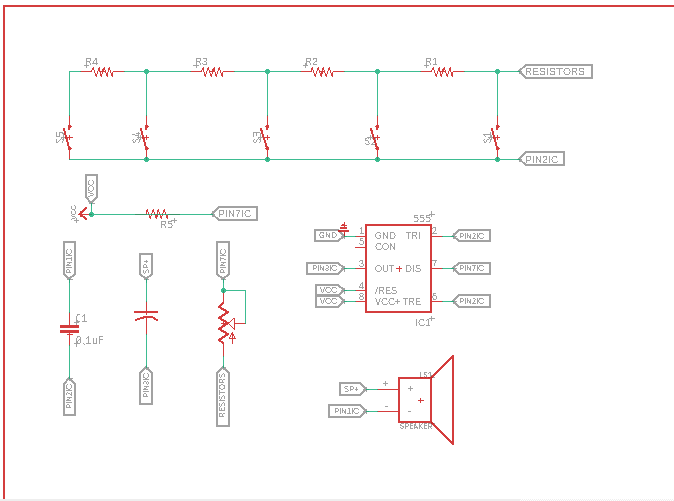

Connect them together with "lables" based on the circuit

STEP4

Make it hardwared to make sure from the connections

STEP5

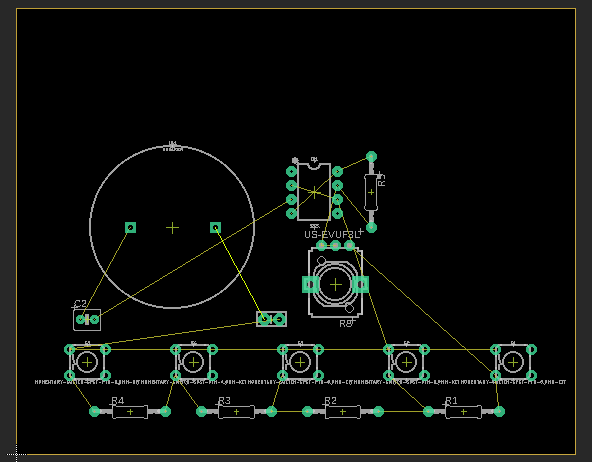

Switch on schmatic mood to rearrange them

STEP6

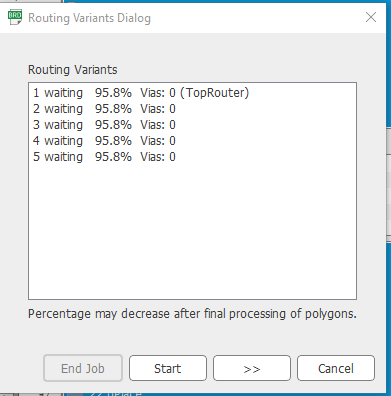

Make the route airwire and autorouter to make sure it is right

STEP7

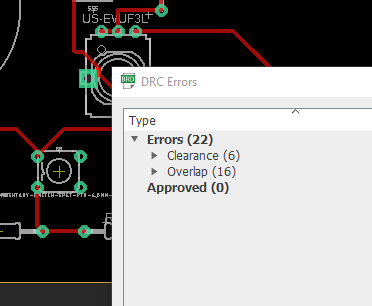

Fix all the errors we found after DRCing our routes

STEP8

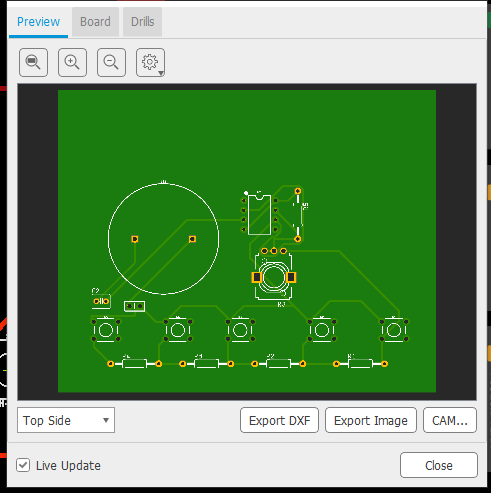

Watch a preview for your pcb
